Homeward Bath Galaxy Plus Steam Shower 60L x 37W x 88H WS112-36

Product Description

A spa in your own home. Homeward Bath’s Luxurious shower and steam systems are equipped with everything you need for total and complete relaxation. The multi-jet shower enclosure, comes with an ultra quick heating 4.2KW steam generator, Multiple body massage jets, a drenching 8 in. wide Rainfall shower head, and a hand held shower head with adjustable settings for many different water spray patterns. It also comes with a Wireless media center that allows you to play your favorite music, talk shows, sporting events, etc. from the radio, MP3, CD, IPods , and even your cell phone, Additionally, the multi colored led lights illuminate the aroma therapy filled steam to create the ultimate relaxation experience.

DESCRIPTION

• Two person Steam and Shower Enclosure
• Upgraded 4.2kW Quick heating Self-Draining Steam Generator w/Steam Aromatherapy Cup
• Stone Base Available (Upgrade)
• Acrylic Base (Upgrade)
• 12 Body Massage Jets
• Hand-held Shower w/ Various water massage settings & adjustable height bracket
• 8 in. wide water-drenching Rainfall Shower
• UPC-Certified Thermostatic / Anti-scald Faucet
• “Special Process” Black Tempered Glass walls and front Clear Glass
• “Glass Touch” Control Panel
• FM Radio
• Wireless transmitter transmits from any electronic device
• “Chromotherapy” LED multiple Color Lighting
• Waterproof Shower Grid
• Circulation Fan
• Accessory Rack
• Hinged door
• Unit and door is reversible
• Assembles from inside the unit

GENERAL INFORMATION

• Units come in panels and are assembled with screws, nuts, and bolts on site
• This unit should be assembled inside the bathroom for convenience
• Access panel near control panel and jets is recommended
• Note: All shower bases need to be leveled in its final resting position (all feet must be touching the ground). Mark the placement, then pull base out and begin assembly

TECHNICAL INFORMATION

• Materials: aluminum, tempered glass
• Power supply: 220V
• Steam ready: 2-5 MIN
• Dimensions: 60L x 37W x 88H in

ELECTRICAL INFORMATION

• 1 dedicated 12-2 wire with 20 amp GFCI breaker

PLUMBING REQUIREMENTS

• The unit is equipped with hot and cold metal braided water supply hoses with ½ inch national pipe threaded fitting
• Hot and cold shutoffs with ½ inch male national pipe thread (not included) should be installed
• Supply hoses are to be connected from the faucet manifold on the unit to the shutoff valves
• All water jet features are pre-plumbed with reinforced braided flexible supply hose
• All fixtures and fittings must be checked for tightness as they may have bee loosened during transportation

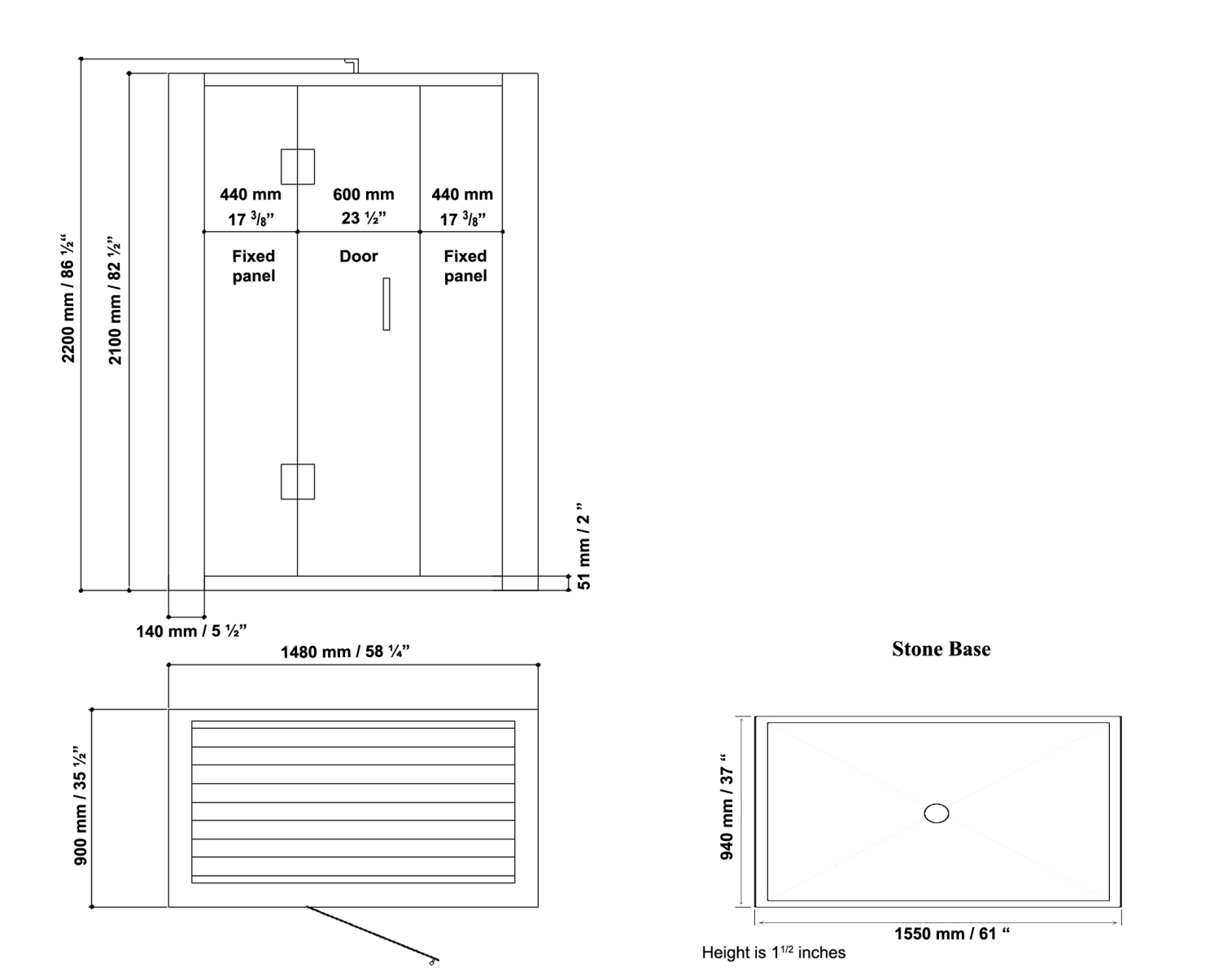

DIAGRAM

INSTALLATION MANUAL
